Linear transformation Y=AX viewed as a product of rotations and elongations /contractions in mutually orthogonal directions

Consider the case of a two dimensional transformation Y = AX and consider what it transforms a unit circle centered at the origin into. It transforms the circle into an eclipse where the semi-major and semi-minor axes of the ellipse correspond to the directions of the mutually perpendicular elongations / contractions. Also, the semi-major and semi-minor axes represent the images of a certain two diameters of the unit circle which also happen to be mutually perpendicular. The linear transformation is equivalent to a rotation of the x-y system to bring the x axis into coincidence with diameter AB, two elongations / compressions in the x and y directions (which stretch and compress the circle into the shape of the ellipse) and a final rotation that carries the ellipse into its final position.

Unit vectors in the direction of and are given by the normalized eigenvectors of the matrix (AAT) -1 . See figure. Unit vectors in the direction of and are given by the normalized eigenvectors of the matrix (AT A) -1 . If B is a matrix whose columns consist of the normalized eigenvectors of (AAT) -1 and C is a matrix whose columns consist of the normalized eigenvectors of (AT A) -1 then A can be written as the product:

A = BDC -1

where D is a diagonal matrix. C effects the first rotation, D effects the two perpendicular elongations / compressions, and B effects the final rotation.

______________________________________________________________________

Re-examination and re-working of the same problem. The following represents a re-examination and reworking of the same problem done in June 84.

Consider the following point transformation in the plane: Let a unit circle centered at the origin

1)

or, in matrix form,

be transformed by the linear point transformation

where A is a non-singular 2x2 matrix.

The equation of the transformed circle will be

or, equivalently,

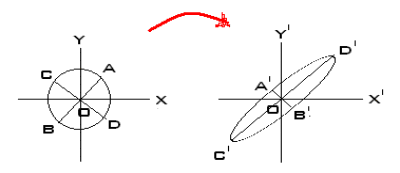

and will be an ellipse. See figure.

Let λ1 and λ2 be the eigenvalues of matrix (AAT)-1 . Let B be a matrix whose columns consist of the corresponding normalized eigenvectors of the matrix (AAT)-1 . The columns of B will then consist of elementary unit vectors along the axes and .

The lengths of the semi-axes and are given by the quantities and

respectively.

Let a matrix C be given by

The columns of C consist of the vectors and .

Let a matrix D be given by

The columns of D consist of the vectors and .

If we rearrange 7) above we arrive at the following factorization of the matrix A:

Since matrix D is orthogonal 8) may be written as

which is our final result.

In the linear transformation

matrices B and DT are both orthogonal matrices effecting rotations of the coordinate system and matrix effects stretching / compressing in two mutually perpendicular directions. Matrix DT takes a point expressed with respect to the x-y coordinate system and expresses it with respect to the B-O-D coordinate system, matrix effects stretching /shrinking in the directions of the and axes, and matrix B takes a point expressed in the B-O-D coordinate system and expresses it in the final x’-y’ coordinate system.

General case when A is an nxn matrix. We have developed the formula for the factorization of matrix A for the case of two dimensional space. The case for n-dimensional space is a direct extension of the above reasoning.

Let a unit sphere in n-dimensional space

= 1

or, equivalently,

be transformed by the linear point transformation

X' = AX

The equation of the transformed sphere will be

Let λ1, λ2, .... , λn be the n eigenvectors of the matrix (AAT) -1 and B be a matrix whose columns consist of the corresponding normalized eigenvectors of (AAT) -1 .

Let

Let

Then

which is our desired factorization.

Matrices B and DT are both orthogonal matrices effecting “rotations” in n-dimensional space and matrix

effects stretching / compression in n mutually orthogonal directions in n-dimensional space.
